Introduction

A leaking joint, mismatched bolt pattern, or wrong pressure class can turn a simple pipe connection into a costly shutdown. Choosing a flanged fitting is not only about size; it depends on the fluid, pressure, temperature, pipe schedule, face type, gasket, and maintenance needs of the system. For engineers, buyers, and maintenance teams, understanding these details helps prevent installation errors, improve sealing reliability, and select a connection that performs safely in real piping conditions.

Start With the Service Conditions, Not the Flange Type

Pressure, Temperature, and Fluid Come First

The first step in choosing a flanged fitting is not picking weld neck, slip-on, threaded, or blind. Selection should begin with the service environment because the same connection can work well in chilled water and fail quickly in high-temperature steam, sour gas, slurry, or corrosive chemical service. Operating pressure shows how much force the joint must contain, while operating temperature affects both the flange material and the gasket’s ability to hold compression. A pressure class is only useful when it is checked against the correct pressure-temperature rating.

The fluid inside the line matters just as much as pressure. Clean water, compressed air, hydrocarbons, caustic chemicals, steam, seawater, and abrasive slurry all create different risks for corrosion, erosion, swelling, gasket attack, or vibration. A stainless flanged fitting may be suitable for one corrosive medium but unnecessary for a dry utility line. Thermal cycling also deserves attention because repeated expansion and contraction can reduce bolt preload and create small leak paths over time.


Pipe Size, Schedule, and Connection Point

A flanged fitting must match the pipe and the mating component, not just the nominal pipe size printed on a drawing. Nominal Pipe Size, or NPS, identifies the general size family, but pipe schedule affects wall thickness and internal diameter. For weld neck and socket weld designs, the flange bore needs to suit the pipe schedule so flow remains smooth and the weld geometry is correct. A poor bore match can create turbulence, pressure drop, erosion, or fit-up problems during fabrication.

The bolt circle diameter and bolt hole pattern are equally critical. A flanged fitting that appears close in size may still fail to align with a valve, pump nozzle, vessel connection, or another flange if the standard or pressure class is different. Same NPS does not automatically mean same bolt pattern, same face design, or same pressure capability. This is why a flanged fitting should be checked against the actual mating component before purchase.

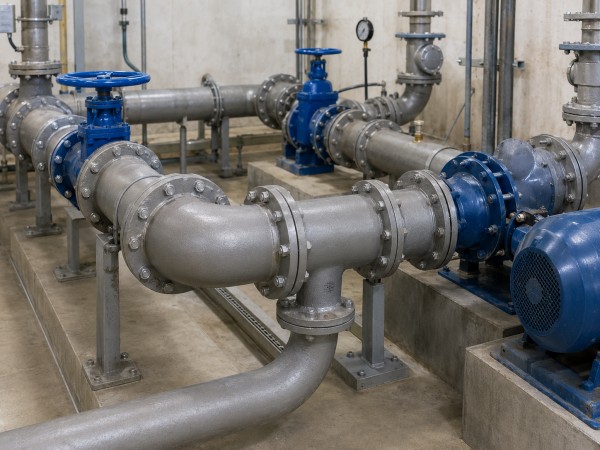

Maintenance Access and Disassembly Needs

Serviceability is one of the main reasons to use a flanged fitting instead of a permanent welded joint. Valves, strainers, pumps, meters, relief devices, and inspection ports often need to be removed during maintenance without destroying the surrounding pipework. In these locations, a bolted connection allows technicians to isolate the section, remove the component, inspect the gasket face, and reassemble the line with controlled torque.

Selection factor

What to verify

Common mistake

Pressure and temperature

Pressure-temperature rating

Treating class number as actual pressure

Fluid or gas

Chemical resistance and erosion risk

Choosing by price only

Pipe size and schedule

NPS, schedule, bore, bolt pattern

Assuming same NPS always fits

Maintenance need

Access and disassembly frequency

Welding where future removal is likely

Common Flange Fitting Types and Their Best Uses

Weld Neck, Slip-On, and Socket Weld Flanges

Weld neck flanges are typically chosen for high-pressure, high-temperature, and cyclic stress applications because the tapered hub transfers load smoothly into the pipe. The butt-welded connection helps reduce stress concentration and supports better flow when the bore matches the pipe schedule. A weld neck flanged fitting is often the safer choice near pressure vessels, critical process lines, steam systems, and applications where vibration or temperature swings are expected.

Slip-on flanges are easier to align and usually less expensive to install in low-pressure or non-critical service. They slide over the pipe and are secured with fillet welds, which makes them practical for utility water, low-pressure process lines, and general plant piping. Their lower cost can be attractive, but the design is not usually the best option for severe cyclic loading. When a slip-on flanged fitting is used, weld quality and final alignment still determine whether the joint will remain leak-free.

Socket weld flanges serve a narrower but important role in small-bore, higher-pressure piping. The pipe fits into a socket and is welded externally, creating a compact connection for instrumentation, hydraulic, and small process lines. The installation gap at the socket shoulder should not be ignored because thermal expansion and weld stress can affect long-term performance. Designers should avoid socket welds in services where trapped fluid in the crevice could accelerate corrosion.

Threaded and Lap Joint Flanges

Threaded flanges are useful where welding is not practical, permitted, or safe. They are common on small-diameter lines, restricted-access locations, and certain hazardous areas where hot work creates additional risk. Since the connection depends on threads rather than welds, the pipe wall, thread quality, sealant, and service conditions must be compatible. This type of flanged fitting should be used cautiously in severe vibration, high thermal cycling, or thin-wall piping because loosening and fatigue can become problems.

Lap joint flanges solve a different problem: alignment and repeated disassembly. In a lap joint flanged fitting, the backing flange rotates around a stub end, allowing bolt holes to line up more easily during installation. This design works well in systems that require frequent cleaning, inspection, or dismantling. It can also reduce cost when the wetted stub end must be stainless, duplex, or nickel alloy while the backing flange can be a less expensive material.

Blind, Reducing, and Orifice Flanges

Blind flanges close the end of a piping system, vessel nozzle, or valve connection. They are widely used for pressure testing, future expansion points, maintenance isolation, and permanent termination of unused lines. Reducing flanges allow a pipe size change at a flanged connection, which can save space compared with using a separate reducer in some layouts. Orifice flanges are designed for flow measurement and include features that support an orifice plate and pressure taps.

Each specialized flanged fitting should not be treated as a generic substitute; each serves a defined piping function.

Flange type

Best application

Installation method

Main limitation

Weld neck

Critical pressure or temperature service

Butt weld

Higher cost

Slip-on

Utility and lower-pressure lines

Fillet weld

Less suitable for severe stress

Socket weld

Small-bore process lines

External fillet weld

Crevice corrosion risk

Threaded

No-weld small pipe connections

Threaded

Weak under vibration

Lap joint

Frequent dismantling

Stub end plus backing flange

Not ideal for severe service

Blind

Sealing or testing line ends

Bolted with gasket

Heavy in large sizes

Standards, Pressure Classes, and Compatibility Checks

Key Standards That Control Flange Selection

Standards exist because a flanged fitting must be interchangeable, traceable, and safe under defined conditions. ASME B16.5 is commonly used for pipe flanges and flanged fittings up to NPS 24, while ASME B16.47 covers larger steel flanges. API 6A applies to wellhead and Christmas tree equipment in oil and gas service, where pressure classes and RTJ sealing requirements differ from general industrial piping. AWWA C207 is common in waterworks applications and often uses different drilling patterns from ASME flanges.

These standards influence dimensions, material groups, tolerances, markings, face design, testing expectations, and pressure-temperature ratings. A flanged fitting from one standard may physically resemble another but still be incompatible in bolt circle, bore, gasket style, or pressure system. For replacement work, the standard should be verified from drawings, equipment tags, flange markings, or supplier documentation before any order is placed.

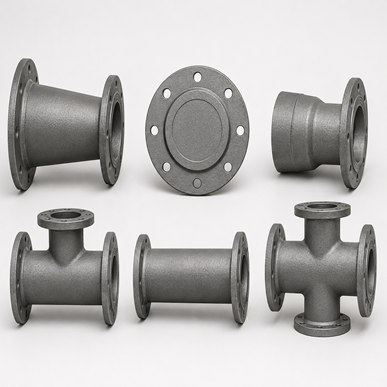

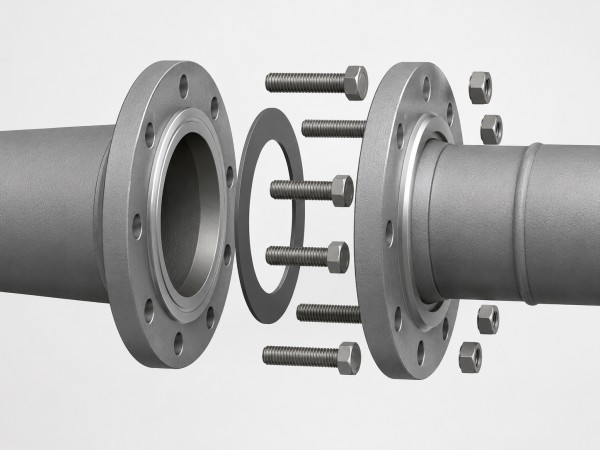

flanged fitting

Pressure Class and Temperature Derating

Common ASME pressure classes include 150, 300, 600, 900, 1500, and 2500. The number does not mean the flange can always hold that exact pressure in every condition. Allowable pressure changes with temperature and material group, so a carbon steel flange at elevated temperature may have a lower allowable pressure than the class name suggests. For that reason, a flanged fitting should be checked against the applicable pressure-temperature table, not selected by class label alone.

Face Type and Bolt Pattern Must Match

Compatibility checks should include face type, bolt circle diameter, bolt hole count, bore, gasket dimensions, and pressure class. Raised face, flat face, and ring type joint connections are designed for different sealing methods and should not be mixed casually. Bolting a raised face to a brittle flat-face component can concentrate load and increase cracking risk. Before ordering any flanged fitting, confirm the standard, NPS, pressure class, face type, pipe schedule, bore, gasket style, material grade, and documentation requirements.

Sealing Performance: Face Type, Gasket, and Installation Quality

Raised Face, Flat Face, and Ring Type Joint

The sealing face determines how bolt load is transferred into the gasket. Raised face flanges are common in industrial service because the raised area concentrates compression over a smaller gasket surface. This makes them practical for many process, utility, and refinery applications when paired with the correct gasket. A raised face flanged fitting should be matched with the right gasket thickness, material, and pressure class to avoid uneven compression.

Flat face flanges place the gasket across the full face and are often used with cast iron, fiberglass, bronze, or other components that may be damaged by concentrated bolt load. Their purpose is load distribution. Ring type joint flanges use a machined groove and a metal ring gasket to create a high-integrity seal in high-pressure or high-temperature service. RTJ joints demand precise machining, correct ring selection, and clean groove surfaces.

Gasket Selection and Surface Finish

Gaskets are not accessories; they are part of the pressure boundary. Spiral wound gaskets are common with raised face flanges, full-face gaskets suit many flat face joints, soft cut gaskets may be used in lower-pressure service, and metal ring gaskets are used with RTJ designs. The gasket material must tolerate the process fluid, temperature, pressure, and compression load. If the gasket is attacked chemically or loses recovery after thermal cycling, the joint can leak even when the flange body is correct.

Surface finish adds another layer of sealing performance. Many flange faces use serrations that help the gasket grip and resist blowout. A very smooth finish may not hold some soft gaskets well, while excessive roughness can damage them. Terms such as AARH, concentric serration, and spiral serration help define whether the sealing surface is suitable for the chosen gasket.

Torque, Alignment, and Leak Prevention

Installation quality often decides whether a flanged fitting performs as specified. Misalignment, lack of parallelism, dirty sealing faces, damaged serrations, uneven bolt preload, or the wrong torque sequence can all create leakage paths. Tightening one side fully before the other side compresses the gasket unevenly and may distort the joint. Controlled bolting aims to distribute load evenly around the bolt circle.

Before startup, technicians should confirm the following:

Flange faces are clean, dry, and free of dents or heavy scratches.

The gasket type, size, and material match the face and service.

Bolts and nuts are the correct grade, length, and condition.

Flanges are aligned and parallel without forcing the pipe.

Torque is applied in a cross-pattern sequence with staged passes.

Inspection results are documented before the line is pressurized.

Conclusion

Selecting the right flanged fitting starts with understanding the system it will serve: pressure, temperature, fluid type, pipe schedule, face design, gasket compatibility, and maintenance access all affect long-term reliability. A well-matched flange connection reduces leakage risk, simplifies inspection, and helps piping systems remain safer and easier to service.

Shanxi Jin Steel Casting Co.,Ltd. supports these requirements with flange and pipe fitting products designed for practical industrial use. By choosing components that match the application and installation conditions, buyers can improve fit-up efficiency, reduce avoidable rework, and build more dependable piping connections.

FAQ

Q: What is a flanged fitting used for?

A: A flanged fitting connects pipes, valves, pumps, or equipment with bolts and a gasket, allowing the joint to be opened later for inspection, repair, or replacement.

Q: What is the difference between a flange and a pipe fitting?

A: A flange is a bolted connection point with a sealing face. A pipe fitting changes direction, size, or flow path, though some fittings include flanged ends.

Q: Which flange type is best for high-pressure piping?

A: Weld neck flanges are commonly preferred for high-pressure or high-temperature systems because their tapered hub and butt-welded design help distribute stress more evenly.

Q: Why do flanged joints leak?

A: Common causes include incorrect gasket selection, damaged sealing faces, poor alignment, uneven bolt preload, wrong torque sequence, or mismatched flange face types.

Q: Can different flange standards be connected together?

A: Not automatically. ASME, API, AWWA, DIN, and other standards may use different bolt patterns, pressure ratings, bore sizes, or face designs.

Q: How do I choose the right gasket for a flange connection?

A: Match the gasket to the flange face type, pressure class, temperature, fluid compatibility, and surface finish. The wrong gasket can cause leakage or early failure.
