Pipe flange material choices often look straightforward until the service conditions start to matter: a low-cost carbon steel option may work in a dry utility line but fail early around chlorides, chemicals, heat, or repeated cleaning. The right flanged fitting has to match more than pipe size; it must suit the fluid, pressure-temperature rating, external environment, gasket, bolts, and inspection requirements. A clear selection process helps avoid leaks, corrosion, rejected documentation, and paying for premium alloys where a simpler material would perform reliably.
The first selection question is not which alloy looks strongest on paper. The better question is what the pipe carries and how that medium behaves over years of operation. Potable water, wastewater, steam, condensate, hydrocarbons, food-grade liquids, chemical fluids, seawater, and slurry all create different risks for a flanged fitting. Clean water may only need predictable strength and coating protection, while acids, chlorides, caustics, or abrasive solids demand stronger material control.
The medium also affects hygiene, erosion, and contamination risk. Slurry can wear the bore and sealing area even when the chemistry is not aggressive. Food and beverage systems often favor stainless steel because cleanability and surface stability matter as much as pressure capacity. Chemical lines need compatibility with the exact process fluid rather than a broad "corrosion-resistant" label.
A flanged fitting material should be checked against its pressure-temperature rating, not the pressure class name alone. Class 150, 300, 600, 900, 1500, and 2500 are rating families, but allowable pressure changes with material grade and temperature. As temperature rises, many materials lose allowable stress, so a flanged fitting that is acceptable at ambient temperature may not be acceptable in hot steam or thermal oil service. Hydrostatic test pressure also matters because the test condition may exceed normal operating pressure.
Cold service creates a different failure mode. Some steels lose toughness at low temperature, increasing the risk of brittle fracture during startup, shutdown, or outdoor winter exposure. In those cases, impact toughness can be more important than basic tensile strength. A safe flanged fitting choice considers normal operation, pressure surges, test pressure, and the worst credible temperature.
The outside environment can shorten flanged fitting life even when the internal fluid is mild. Coastal salt air, buried piping, offshore platforms, chemical splash zones, and outdoor industrial plants can attack the outer surface, bolt set, and gasket area. A carbon steel flanged fitting in a protected indoor room faces a very different risk from the same product near saltwater. Coatings, drainage, inspection access, and material upgrades should be part of the selection discussion.
Galvanic corrosion is a hidden risk when dissimilar metals touch in the presence of moisture or another electrolyte. Stainless steel joined to carbon steel, copper alloy near steel, or aluminum connected to stainless steel can create an electrical corrosion cell. Matching materials is often the simplest way to reduce this risk. When mixed metals cannot be avoided, insulating gasket kits, sleeves, washers, or protective coatings may be needed.
Carbon steel remains the practical choice for many industrial flanged fitting applications because it is strong, weldable, available, and economical. ASTM A105 is commonly used for forged carbon steel flanges in general service, especially where the fluid is not severely corrosive. A carbon steel flanged fitting can be reliable in utility systems, non-corrosive process lines, oil and gas service, and many indoor plant applications. Its main weakness is corrosion resistance, so painting, coating, cathodic protection, or environmental control may be required.
Low-temperature service may call for A350 LF2 rather than standard carbon steel. That grade is valued where impact toughness is needed in cold climates, refrigerated systems, or low-temperature process conditions. Carbon steel is often the best value when service conditions are moderate. It becomes a poor flanged fitting material when corrosion, cleaning chemicals, or marine exposure dominate the risk profile.
Stainless steel is usually selected when corrosion resistance, cleanability, or product purity matters. 304 stainless steel works well in many mild corrosive and sanitary environments, including food processing and clean water systems. 316 and 316L stainless steel add molybdenum, improving resistance to chloride pitting in coastal, washdown, chemical, and marine-adjacent installations. A stainless flanged fitting can reduce coating maintenance and extend service life where carbon steel would rust quickly.
The choice between 304 and 316L should not be based only on purchase price. Chlorides, cleaning chemicals, temperature, crevices near the gasket, and stagnant zones can all accelerate localized corrosion. In hygienic systems, surface condition and cleaning practice also affect performance because trapped residue can undermine sanitation. Stainless steel is a strong mid-range flanged fitting option, but it is not automatically enough for seawater, strong acids, or severe chloride service.
High-temperature and high-pressure systems often require materials beyond carbon steel and standard stainless steel. Chrome-moly alloy steels such as F11, F22, and F91 are used in steam, refinery, and power generation systems because they provide better creep resistance at elevated temperature. In those services, long-term strength under heat matters more than room-temperature strength. A flanged fitting in a high-temperature steam line should be evaluated for thermal stress, pressure rating, and pipe material compatibility.
Duplex 2205 and super duplex grades such as F53 or F55 are used where chloride stress corrosion, pitting resistance, and higher strength are priorities. Offshore production, desalination, seawater systems, and some sour service designs often justify these materials because downtime and corrosion failure are expensive. Nickel alloys such as Inconel 625, Hastelloy C-276, and Monel 400 serve aggressive chemical, marine, and high-temperature environments. Their cost and lead time are higher, but they can be the lowest-risk flanged fitting choice where failure would be far more expensive.

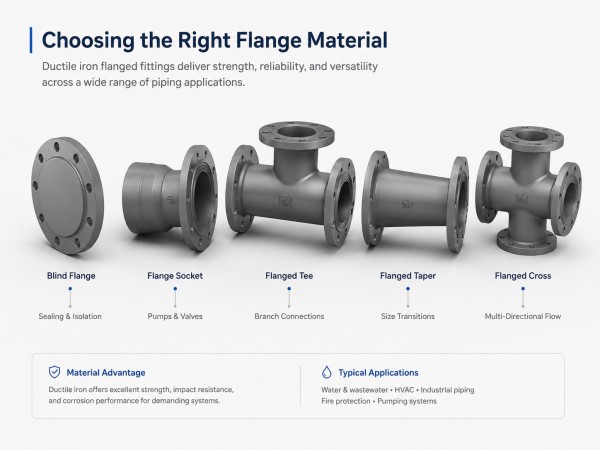

Ductile iron is common in water distribution, wastewater, fire protection, and utility infrastructure because it combines strength, durability, and practical cost. A ductile iron flanged fitting is often used with pumps, valves, hydrant systems, and waterworks piping where standards and gasket compatibility are clearly defined. This material should still be matched to the correct pressure class, coating, lining, and mating flange. It is not a substitute for high-temperature alloy service or aggressive chemical duty.
Non-metallic materials such as PVC, CPVC, PP, and HDPE may suit low-pressure or corrosion-resistant systems. These materials avoid many metallic corrosion problems, but they bring limits in temperature, pressure, UV exposure, mechanical strength, and bolt loading. A plastic flanged fitting must be installed carefully because excessive torque can deform the flange or damage the sealing area. Compatibility with the mating flange, gasket, support spacing, and expected thermal movement should be confirmed before purchase.
Service Condition | Suitable Materials | Main Reason |
General industrial piping | Carbon steel / ASTM A105 | Cost-effective and available |
Low-temperature service | A350 LF2 | Better impact toughness |
Food or sanitary service | 304 / 316L stainless steel | Cleanability and corrosion resistance |
Coastal or chloride exposure | 316L, duplex, super duplex | Better pitting resistance |
High-temperature steam | F11, F22, F91 alloy steel | Creep resistance |
Seawater or offshore | Super duplex, Monel, Inconel | Strong chloride resistance |
Waterworks | Ductile iron, AWWA-compatible steel | Practical and economical |
Severe chemical service | Hastelloy, Inconel, lined systems | High chemical resistance |
Standards narrow the material choice before price becomes meaningful. ASME B16.5, ASME B16.47, AWWA C207, API 6A, and ASME B31.3 do not describe the same flange universe. These standards can control dimensions, pressure-temperature ratings, material groups, marking, tolerances, face geometry, and documentation requirements. A flanged fitting that is acceptable in a waterworks project may not be suitable for process piping, and an oilfield wellhead connection cannot be judged by general industrial assumptions.
ASME B16.5 is commonly associated with standard steel flanges in many pipe sizes, while ASME B16.47 covers larger-diameter flanges. AWWA standards are often relevant in water infrastructure, and API 6A applies to high-pressure wellhead and oilfield service. Process piping projects may also reference ASME B31.3, which pushes the buyer to consider design conditions and material suitability. Confirm the governing standard before comparing supplier quotes.
A pressure class is not a universal pressure promise. Class 150, Class 300, and Class 600 differ by material, temperature, dimensions, and standard family. API, AWWA, DIN/EN, and ASME ratings may use different systems, so a similar-looking flange can have a different allowable pressure or bolt pattern. The selected flanged fitting should be checked against operating pressure, maximum temperature, hydrotest pressure, and any upset condition expected in service.
Many ordering mistakes begin with a shortcut. A buyer may match nominal size and pressure class but miss the material group or temperature limit. Another team may use normal operating pressure while ignoring hydrostatic testing, steam-out, or cleaning cycles. Correct selection means checking the actual rating table or project specification instead of assuming the class name is enough.
Face type affects whether the gasket can seal under the available bolt load. Raised Face, or RF, is common in many ASME flange connections because it concentrates load on the gasket. Flat Face, or FF, is often used with cast iron, fiberglass, or brittle equipment where a raised face could create damaging bending stress. Ring Type Joint, or RTJ, is used in high-pressure and high-temperature service where a metal ring gasket seals inside machined grooves.
Tongue and Groove or Male and Female faces appear in specialized services where gasket containment and alignment are critical. These face types must match the mating component, not just the pipe size. Two same-size flanges may differ in bolt circle, drilling pattern, face type, gasket dimensions, pressure rating, and standard family. Before ordering any flanged fitting, confirm the mating flange standard, face, and gasket style because visual similarity does not guarantee compatibility.
Material failures often begin with short-term cost decisions. A low-priced carbon steel flange may seem economical, but in corrosive outdoor, buried, or chemical environments it can lead to coating repairs, leakage, downtime, replacement labor, and inspection delays. The right flanged fitting should be judged by lifecycle cost, not only by purchase price. Key risks to check before selecting a material include:
● Corrosion exposure and coating requirements
● Expected service life and maintenance access
● Shutdown, excavation, or replacement difficulty
● Inspection and documentation requirements
● Risk of using mixed metals in wet environments

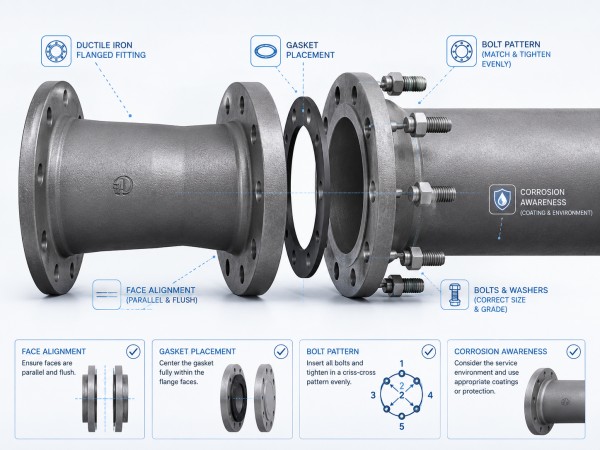

Another common mistake is treating the flange as a single part instead of a complete joint. Dissimilar metals can cause galvanic corrosion if moisture is present, so the pipe, flange, bolts, washers, gasket, and coating should be reviewed together. Weld neck flanges also need the correct pipe material, schedule, and bore to avoid weld mismatch, flow disruption, or inspection rejection. Required documents such as Mill Test Reports, Certificates of Conformance, heat numbers, material markings, and PMI records should be confirmed before purchase, not after installation.
Choosing pipe flange materials should always begin with service conditions, not catalog shortcuts. Fluid type, pressure-temperature rating, external corrosion risk, gasket compatibility, face type, and required documentation all influence whether a flanged fitting will perform safely over time.
Shanxi Jin Steel Casting Co.,Ltd. supports this selection process with pipe flange and fitting products designed for practical industrial use, helping buyers match material, standard, and application requirements more confidently. A well-specified flange connection reduces leakage risk, avoids unnecessary replacement, and keeps piping projects moving with fewer costly surprises.
A: The best material depends on the fluid, temperature, pressure, corrosion risk, and required standard. Carbon steel suits general service, while stainless, duplex, or nickel alloys fit harsher conditions.
A: In most cases, matching the flange and pipe material helps maintain weld compatibility and reduces galvanic corrosion risk. Exceptions require engineering review, coatings, or insulation methods.
A: No. Stainless steel offers better corrosion resistance, but carbon steel is often more economical for dry, non-corrosive, or general industrial piping where corrosion protection is manageable.
A: Pressure class is not a fixed pressure value. Allowable pressure changes with material and temperature, so flange selection should consider operating conditions and hydrotest requirements.
A: Leaks often result from wrong gasket material, uneven bolt load, damaged flange faces, incompatible face types, pipe misalignment, or using a material unsuitable for the service environment.
