How To Fit Up A Flange To A Pipe?

Introduction

A flange-to-pipe connection often fails for reasons that are easy to miss during installation: a slightly uneven flange face, the wrong gasket material, forced bolt alignment, or an inconsistent tightening sequence. In industrial piping, water systems, mechanical rooms, and process lines, these small errors can lead to leakage, downtime, and costly rework. Properly fitting a flange to a pipe means checking compatibility, preparing the surfaces, aligning the parts accurately, and tightening the joint in a controlled way so the flanged fitting can seal reliably under real service conditions.

Check the Flange, Pipe, and Components Before Fit-Up

Confirm the flange type and connection method

Start by identifying the flange type because each design changes the fit-up method. A weld neck flange requires accurate bevel alignment for a butt weld, while a slip-on flange depends on correct pipe insertion depth and fillet weld placement. A socket weld flange needs a small expansion gap, and threaded or lap joint designs depend on thread engagement or stub-end compatibility.

The connection method affects tolerances, tools, welding access, and inspection points. Using the wrong flanged fitting style can create weak welds, poor alignment, or a joint that does not match the mating flange. A flanged fitting should always match the pipe schedule, service duty, and project drawing before the pipe is cut or welded.

Match pressure rating, standard, and pipe size

Size alone does not prove compatibility. Check NPS or DN size, Class or PN rating, pressure rating, pipe outside diameter, flange bore, facing, and service temperature. Standards such as ASME B16.5, EN 1092-1, and AWWA C110 help define dimensions, drilling patterns, pressure class, and material expectations.

A wrong rating can become a safety issue, especially where temperature derating, vibration, or corrosive service is involved. Two flanges may look similar but still have different bolt patterns or pressure assumptions. Before assembling a flanged fitting, record the standard, size, rating, material, and face type.

Inspect the flange face, gasket, bolts, and pipe end

Inspection prevents many leaks that later appear to be torque problems. Check the flange face for scratches, dents, rust, burrs, coating damage, or corrosion, and confirm that the pipe end is square and prepared for welding or threading. A raised face or flat face sealing surface must be clean enough to compress the gasket evenly.

The gasket, bolts, nuts, and washers need the same review. A gasket that is too large can intrude into the bore, while one that is too small may not cover the sealing surface. Replace damaged bolts, galled nuts, rusty washers, or compressed gaskets before assembly rather than trying to fix poor parts with extra tightening.

Pre-fit-up checklist:

● Confirm flange type, standard, size, rating, and facing.

● Check pipe OD, wall thickness, and end preparation.

● Inspect the flange face for scratches, rust, dents, and burrs.

● Verify gasket material, thickness, and size.

● Confirm bolt grade, length, washers, and nut compatibility.

● Make sure no part is being forced into alignment.

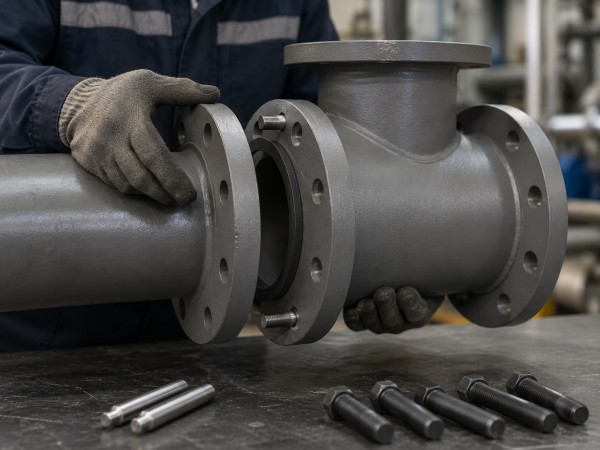

Prepare and Align the Flange to the Pipe

Measure and mark the pipe accurately

Accurate measurement controls the final position of the flange and the reliability of the flanged fitting. Measure pipe OD, wall thickness, cutting length, insertion depth, and weld location before placing the flange. For slip-on and socket weld flanges, pipe position inside the flange affects weld access, clearance, and final face-to-face dimension.

Marking should also account for gasket thickness and the position of the mating flange. When connecting to fixed equipment, valves, or an existing line, field dimensions should be checked against the drawing. Even a small center-to-face error can create pipe strain that later appears as leakage, vibration, or gasket relaxation.

Set the flange square to the pipe centerline

The flange face should be perpendicular to the pipe centerline and concentric with the pipe bore. If the flange is tilted, the gasket compresses unevenly even when the bolts reach the specified torque. Misalignment can also create flange rotation, where one side of the flanged fitting carries more load than the other.

Bolt holes should line up naturally with the mating flange or the project orientation mark. If they align only with force, the pipe or flange position needs correction before tightening. Bolts are made to clamp the joint, not drag a pipe spool into position.

Use the right tools to control alignment

Good fit-up depends on controlled positioning rather than guesswork. Flange alignment pins help bring bolt holes into position without damaging threads, while jack screws or suitable spreading tools allow controlled movement. Calipers, pipe squares, levels, clamps, and straightedges help verify dimensions and squareness before the flanged fitting is locked in place.

A calibrated torque wrench should be ready before final bolting begins. For larger or critical installations, hydraulic torque tools may be specified to create more consistent bolt load. Cleaning solvents and a brass wire brush are also useful because a dirty flange face can defeat careful alignment.

Secure the flange before final welding or bolting

A welded flanged fitting usually requires tack welds before final welding. Place tack welds evenly around the joint, then recheck squareness, bolt hole orientation, and flange face position. Heat distortion can pull the flange out of alignment, especially on small pipe sizes or thin-wall sections.

Threaded and lap joint connections need a similar pause before final tightening. Threads should be fully engaged without over-tightening, and a lap joint flange should rotate freely until the bolt pattern is correctly oriented. A final alignment check before gasket installation protects the flanged fitting seal that comes next.

Install the Gasket and Bolting Set Correctly

Choose the gasket based on service conditions

The gasket is the sealing element of the joint, not a secondary accessory. Selection should consider medium, pressure, temperature, chemical compatibility, flange face type, and compression behavior. EPDM gaskets are common in water service, PTFE is often selected for chemical resistance, and spiral wound or graphite-based gaskets are used where pressure or temperature demands higher performance.

In a flanged fitting, full-face and ring gaskets serve different flange faces. A full-face gasket covers the entire flange surface and is common with flat face flanges, while a ring gasket sits inside the bolt circle on raised face flanges. For a flanged fitting in chemical, steam, or high-pressure service, gasket selection should follow the specification rather than installer preference.

Center the gasket on the sealing surface

Gasket position directly affects sealing performance. The gasket should sit evenly on the sealing surface without protruding into the pipe bore or hanging outside the contact area. An off-center gasket may erode under flow, reduce effective sealing width, or create a leak path on one side of the flanged fitting.

Vertical pipework needs extra care because gravity can cause the gasket to slip before the bolts are seated. Bottom bolts or centering bolts can hold the gasket in place without excessive adhesive. Heavy adhesive can interfere with compression, contaminate the sealing surface, or make future disassembly harder.

Install bolts, nuts, and washers without mixing components

In a flanged fitting, bolting creates the clamping force that compresses the gasket and holds the flange faces together. Bolt diameter, length, grade, washer use, and nut compatibility should match the flange standard and pressure class. Mixed hardware may look acceptable but can have different thread tolerances, strength levels, coatings, or friction behavior.

Clean threads help the nut turn smoothly and produce a more predictable bolt preload. Stainless bolting can suffer from galling, especially when tightened without suitable anti-seize lubricant. A flanged fitting with mismatched bolting may seal temporarily, but it is less reliable during pressure cycling or maintenance.

Gasket and bolt assembly checklist:

● Install a new gasket that matches the service medium.

● Keep the gasket centered on the sealing surface.

● Use the specified bolt grade, diameter, and length.

● Keep nuts, bolts, and washers clean and compatible.

● Apply lubricant only where required by the specification.

● Insert all bolts before applying final torque.

Tighten the Flange Joint Without Damaging the Seal

Start with even hand-tightening

Final tightening should begin only after all bolts are installed. Bring the nuts finger-tight first so the gasket can seat evenly and the flange gap can be checked around the full circumference. If one side closes while the opposite side remains open, the flange faces may not be parallel or the pipe may be under strain.

Hand-tightening also gives one last opportunity to confirm that the gasket has not shifted. The flange should not tilt, and the gasket should not extrude or buckle. This step protects the flanged fitting from uneven compression during the first torque pass.

Apply torque in a crisscross sequence

On a flanged fitting, a circular tightening pattern loads one side of the flange before the other side has settled. That can tilt the flange, crush part of the gasket, and leave another area under-compressed. A crisscross or star pattern spreads the load more evenly across the bolt circle.

A practical sequence uses several passes. The first pass applies a low percentage of target torque, the second increases the load, and the final pass reaches the specified bolt torque. After the cross-pattern passes, a circular check pass at the final value confirms that no bolt was missed.

Lubricate bolts only as specified

Lubrication changes the relationship between applied torque and actual bolt load. Dry threads create more friction, while lubricated threads allow more torque to become clamping force. The same torque value can therefore produce different bolt preload depending on thread condition, lubricant type, and nut-bearing surface.

Apply anti-seize lubricant to bolt threads and nut-bearing surfaces when required, especially where galling or future disassembly is a concern. Avoid putting lubricant on the gasket unless the manufacturer or project specification requires it. Controlled lubrication helps the flanged fitting seal without overloading the bolts.

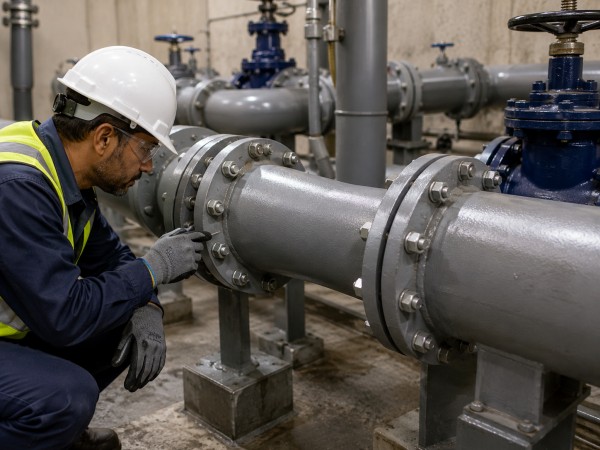

Final Inspection, Testing, and Troubleshooting

Inspect the finished connection before pressure testing

A completed flanged fitting should be inspected before the line is pressurized. Check that the flange faces remain parallel, the gasket is not extruding, and the bolts appear evenly tightened. Threads should extend properly beyond the nuts, and pipe supports should not pull the flanged fitting out of alignment.

Documentation is part of professional installation. Record the flange size, rating, gasket material, bolt grade, lubricant condition, and final torque value when required. A documented flanged fitting is easier to inspect, service, and troubleshoot during future maintenance.

Test for leaks safely

Leak testing depends on service, project specification, and risk level. Hydrostatic pressure testing is common for many liquid systems because water stores less energy than compressed gas. Pneumatic leak testing, soap solution checks, and visual inspection may be used in other cases, but pressurized gas testing requires stricter safety controls.

During testing, watch the gasket area, bolt circle, and flange face interface. A slow seep may point to damaged sealing surfaces, under-compression, or gasket incompatibility. Never tighten a leaking pressurized flanged fitting unless the procedure allows it and the risk has been controlled.

Fix common fit-up problems before operation

Several problems can be corrected before the system enters service. Bolt holes that do not align usually indicate pipe strain, incorrect spool length, or wrong flange orientation. A gasket that keeps slipping may need centering bolts, better support, or a check of gasket size.

If the joint leaks after tightening, avoid assuming more torque is always the answer. The cause may be gasket creep relaxation, flange face damage, corrosion, dirty sealing surfaces, or mismatched bolt lubrication. Finding the cause prevents repeat failure of the flanged fitting.

Conclusion

Fitting up a flange to a pipe requires more than matching parts and tightening bolts. Reliable results come from checking the flange type, pressure rating, gasket material, pipe alignment, bolt condition, and tightening sequence before the system enters service. Each step helps reduce leakage, rework, and long-term maintenance issues.

For projects that need durable flanged fitting components, Shanxi Jin Steel Casting Co.,Ltd. provides cast pipe fittings designed for practical installation and dependable pipeline performance. Choosing properly matched fittings supports safer assembly, smoother maintenance, and more stable operation in real working conditions.

FAQ

Q: What is the correct way to fit up a flange to a pipe?

A: Check the flange type, pipe size, gasket, and bolts first. Then align the flange square to the pipe, secure it, install the gasket, and tighten bolts evenly.

Q: What is a flanged fitting used for?

A: A flanged fitting connects pipes, valves, pumps, or equipment with a bolted joint. It allows easier assembly, disassembly, inspection, and maintenance than permanent welded connections.

Q: Why does a flange connection leak after installation?

A: Common causes include poor flange alignment, damaged sealing surfaces, wrong gasket material, uneven bolt torque, reused gaskets, pipe strain, or bolts tightened in the wrong sequence.

Q: Should flange bolts be tightened in a circle?

A: No. Flange bolts should usually be tightened in a crisscross or star pattern, in stages, to compress the gasket evenly and reduce flange rotation.

Q: Can the same gasket be reused when reconnecting a flange?

A: Reusing a gasket is not recommended. Once compressed, it may lose recovery and create uneven sealing pressure, increasing the risk of leakage after reassembly.

Q: How do I choose the right gasket for a flanged fitting?

A: Match the gasket to the medium, pressure, temperature, flange face, and chemical compatibility. EPDM, PTFE, graphite, and spiral wound gaskets suit different service conditions.
